Oceanbotics SRV-8X OPTIMUS ROV
The SRV-8X Optimus ROV was developed to push the limits required for offshore and more challenging deployments where larger payload capabilities and more sensors are required for more demanding and deeper missions. The stronger thrusters provide for operating in higher currents with quicker responsiveness.
Going Further and Deeper
An optional fiber optic tether and provides for operating at depths up to 500 meters and distances of up to several kilometers. It also provides a data bandwidth in excess of 1 GB/sec.
You can add a wide variety of sensors and robotic arms as a field upgradeable “plug-n-play” installation/solution. Our SubNav-X™ software is preconfigured to recognize approved devices and work out of the box.

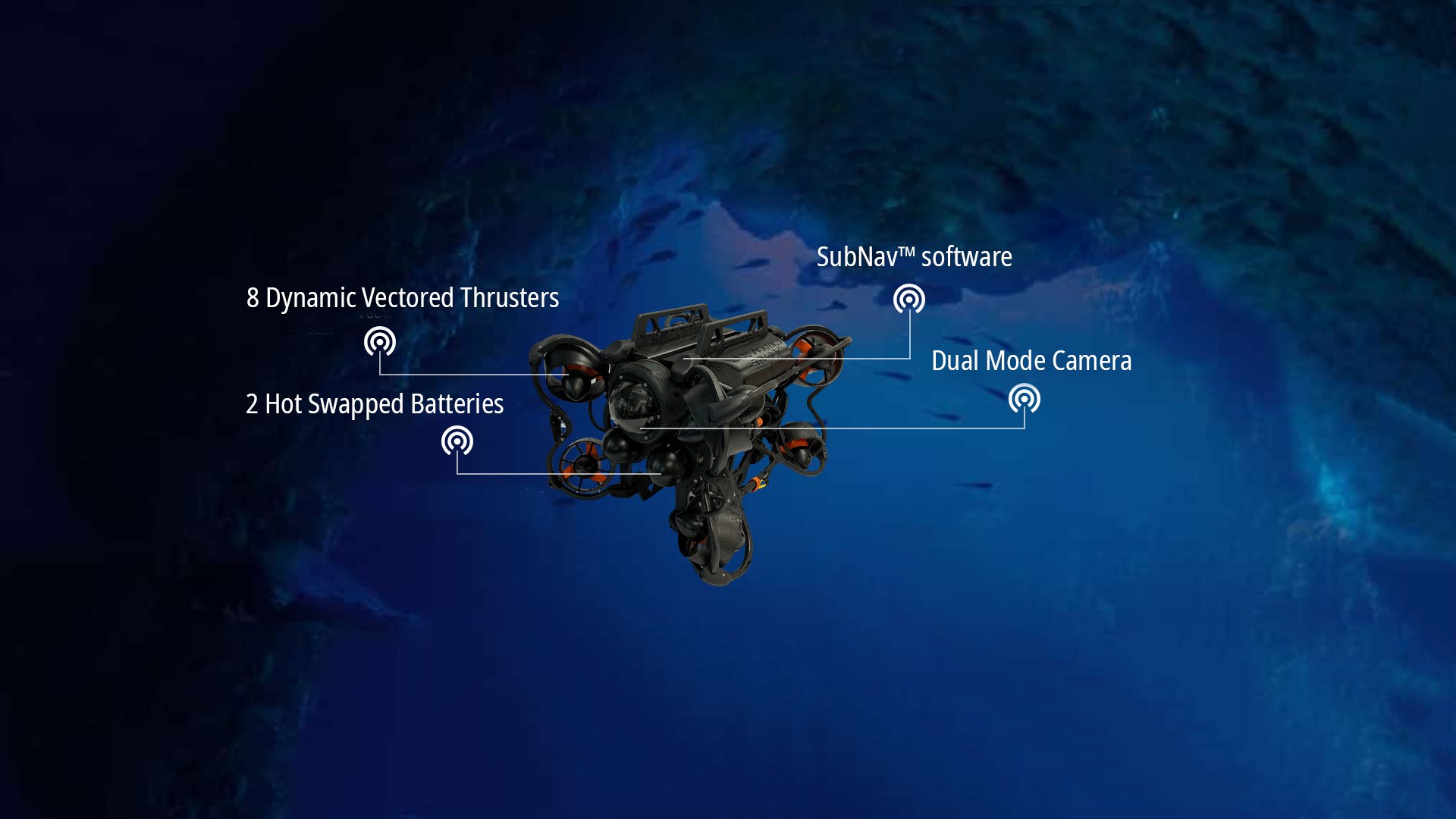

Enhanced Features
Larger thrusters and more powerful design of the Optimus ROV increases payload limitations and ability to work in stronger currents at deeper depths.
Available In Multiple Factory Configurations
All configurations are field upgradable with any of our integrated add-on technologies.
SRV-8X OPTIMUS ROV
Strong Thrusters · Rugged Design · Large Payload · Powerful Software
The big brother of Oceanbotics' popular SRV-8 ROV is here with the same fantastic operating performance! X-model is a very powerful ROV with depth range down to 500 m where you maintain the same intuitive mobility and performance as the SRV-8 ROV.
That makes this X-ROV well suited for tough assignments as well as "regular" positioning and inspection assignments. Especially since SubNav-X software is structured so you can choose which, or all data on the same movie and screen. Flexibility for the professional.
SRV-8X OPTIMUS ROV | DSS KIT
The SRV-8X Digital Surface Station (DSS) Includes:
Rugged Laptop w/SubNav Software, Vehicle, two litiumbatteries, analog/digital camera, two llights, X-box controller, reel w/100m tether, two auxiliary connectors for external ethernet and serial devices, shipping/carrying cases with wheels and battery charger. Also included basic spares kit and trim.
250 m tether
SRV-8X OPTIMUS ROV
X-Box Controller
Rugged Laptop
2 Hot Swappeble Batteries
All data in the same screen
choose the window setup that is best for your mission
SubNav-X™
SubNav-X integrates seamless accessories for ease of use and all-in-one experience. Oceanbotics SRV-8X ROV is intuitive with flexible software that shows a powerful ROV that is modern and designed to be easy to use and works well with various accessories.
SRV-8X ROV Software allows you to customize your mission.
It will be easy to plan your project!
SRV-8X OPTIMUS ROV - MDV
SRV-8X OPTIMUS ROV - MDV (Mine Disposal Vehicle)
This field-tested vehicle will detect and eliminate explosive mine threats quickly
and efficiently, utilizing ECS Special Projects’ Viper MDS technology for neutralizing improvised explosive devices (IEDs). The SRV-8 MDV’s ease of use and adaptive software will allow commercial and naval EOD teams to locate and neutralize mine threats quickly.
Operators will first use the SRV-8 MDV’s state-of-the-art imaging sonar to detect
the mine threat. Upon reaching the mine, the Viper MDS will secure the charge disruptor to the mine. The operator will then navigate the vehicle away from the mine threat while deploying a shock tube that remains connected to the ROV.
This is more about 8X ROV MDV
By activating the charge through the shock tube, the operator will effectively neutralize the mine threat, ensuring the safety of both personnel and the ROV.
The SRV-8 MDV has a NATO Stock Number and represents a significant advancement in mine disposal systems, where revolutionary technology is paired with unmatched ease of use.
This new Special Purpose Vehicle prioritizes diver safety and enhances operational efficiency, making the SRV-8 MDV a necessary addition to any EOD dive team.
ACOUSTIC (SONAR) TRACKING SYSTEM
SRV-8X ROV OPTIMUS ATS - Acoustic (sonar) Tracking System
The SRV-8X Optimus ATS is an exceptional remotely operated underwater vehicle (ROV) engineered to detect pingers & transponders used to identify precise underwater locations.
A prime example includes underwater locator beacons (ULBs) affixed to black boxes (flight recorders), commonly found on commercial aircraft. When directed towards an acoustic beacon, the ATS receives an audio signal, providing information about the exact location of the target. Oceanbotics incorporated these navigation capabilities into its SubNav-X OS software, which is known for its intuitive design and user-friendly experience. Utilizing a signal strength meter, the software precisely determines the beacon’s location by analyzing the characteristics of the audio tone.
The SRV-8X Optimus ATS is also capable of discreetly identifying sonar transponders without revealing their positions, rendering it a highly valuable resource for operations that require absolute confidentiality. With the aid of a conventional gaming controller, the operator can navigate and pinpoint the beacons and transponders with ease. This state-of-the-art technology significantly enhances sonar detection, empowering professionals in defense and search & rescue sectors.
This is more about ATS
Customize the SRV-8X OPTIMUS ROV for Any Mission
RJE Oceanbotics™ SRV-8X come equipped with the SubNav-X™ software as well as additional external connection ports for easy integration with a variety of partner accessories. Professionals who are working hard in various industries across the globe can customize the SRV-8X with equipment crucial to the mission at hand.
Designed to tackle a wide variety of missions, the SRV-8X underwater drone can be used for inspecting infrastructure such as bridges, piers and pipelines, or deployed in a search and recovery mission with equal ease. And, while this ROV is fully capable in its basic configuration, its utility can be enhanced with accessories.
Technical data
Length: 64 cm, Height: 43cm, Width: 51cm, Weight: 25,4kg
Dual hot-swappable battery modules
8 brushless DC thrusters
Battery: Up to 8 hours
Battery source: Dual hot-swappable battery modules
Ultimate Maneuverability with DVC (Dynamic Vector Control)
6 Degrees of Freedom – Full movement in any direction.
Depth down to 500 meters (1640ft)
HD Camera – Total camera tilt range 140 degrees
Lights: 4ea Reach Robotics Lights (6000 Lumen Total)
Navigation: Commercial grade AHRS/IMU, precise Heading, Attitude, Pitch & Yaw
Depth sensor (meters or feet), temperature (°C or °F) turns counter, sensors for heading and depth, humidity sensor
External sensor inputs: 2ea extarnal devices via RS232 or RS485 4ea external devices via Ethernet, Fiber optic tether ready
Grabber: 3-Jaw grabber, Cutter, Sediment Sampler (heads interchangeable)
Reel: 400 meter (1,312ft) capacity with slip ring Fiber optic tether management system avaible
Xbox or Alpha Flight-stick
Rugged PC Notebook, Digital Integration Module Or, Mobile Pilot Station/rugged Tablet Option
Best in Class SubNav-X™ software seamlessly integrates
Transport cases with wheels
Sonar option: Oculus 3D imaging Sonar Fully Integrated with SubNav Software
Navigation option: Seatrac USBL Navigation Fully Integrated with SubNav Software
